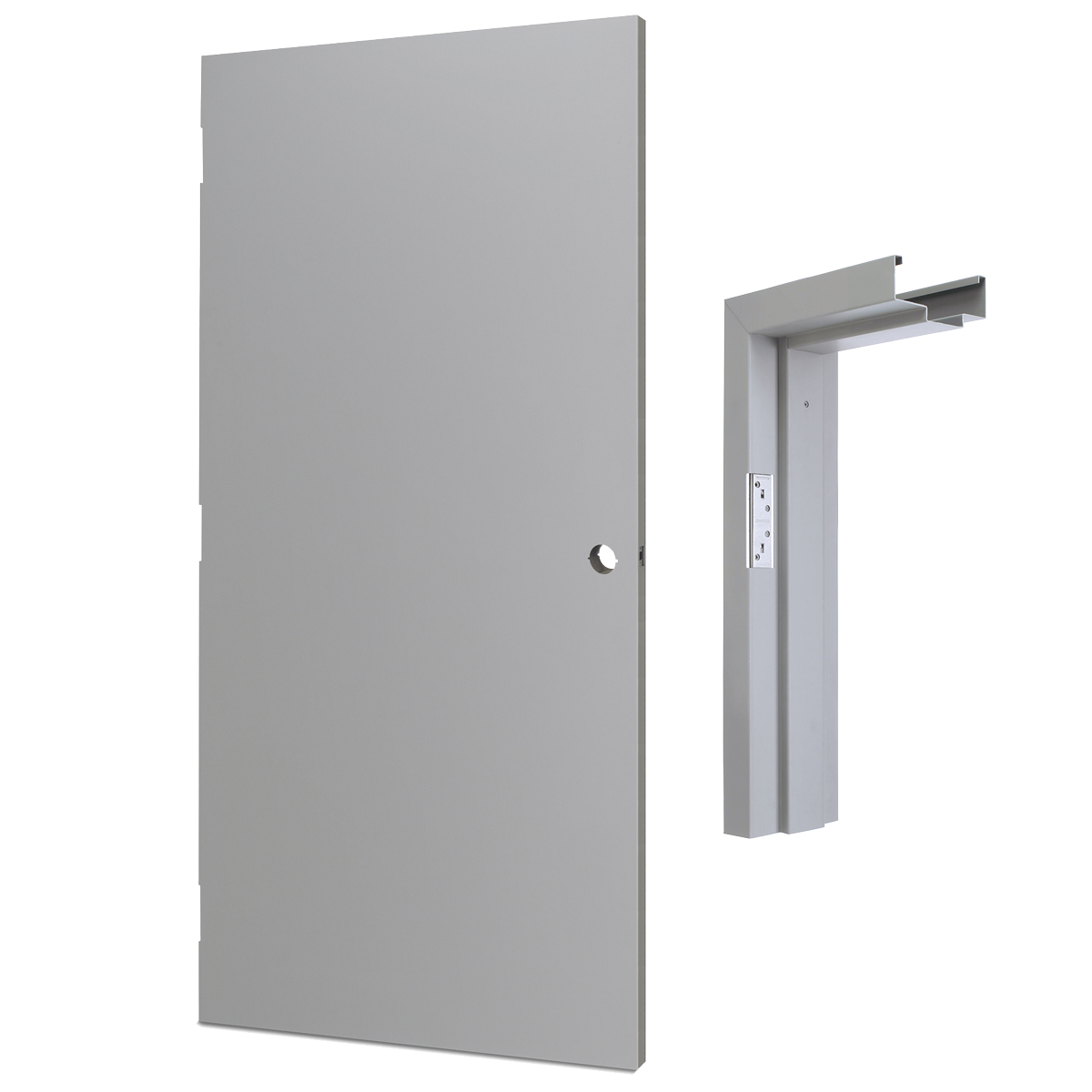

Hollow Metal Door Spartan Doors

TELL SPARTAN DOORS are available in 18 and 20 gauge steel. All doors come with a polystyrene core as standard, making every door smoother, flatter, and stronger. Spartan Door panels are manufactured from high quality galvannealed steel and are thoroughly cleaned inside and out to insure excellent corrosion resistance and paint adhesion. Spartan Doors come standard with a prime coat, ready to be finished. Factory applied finish coat paint is available in many colors. Contact customer service for pricing and quantities required, for factory finish paint.
Spartan Door
Product Sheet
  • Material

    18 Gauge Galvannealed Steel Doors (ASTM A653 / A653-A60)
          Additional Options:
                20 & 16 Gauge
                Galvanize Steel

    Polystyrene Core-Standard
         Additional Options:
                Polyurethane Core Steel
                Stiffened Core

  • Compliance

    The Spartan Series doors offer select options for fire rating to comply with (ASTM E152, UL-10B, UBC 7-2 and UL-10C) and options for Wind Rating for Florida and Texas

    Speak to our sales representative for more details

  • Reinforcements

    4-1/2" Non-handed hinges prep

    7 Gauge reinforcements at the hinges

    12 Gauge reinforcements at the door closer

    Lock box construction

    16 Gauge Top and Bottom Channel Reinforcements

  • Colors

    Prime Gray

    Additional Options:
               Bright White
               Off-White
               True White
               Light Gray
               Bronze Brown

  • Door Style Options

    Flush

    2-Panel

    6-Panel

  • Lite Kit Options

    10 X 10

    5 X 20

    8 X 32

    22 X 28

    22 X 64
